Instant E – Geräuscharme Zirkulationspumpe für Warm- und Trinkwasser

Modell	Förderhöhe(m)	Max. Durchfluss(m³/h)	Leistung(w)	Frequenz(Hz)	DN(mm)	Spannung(V)
Basic 20-8SL	8	4	180	50	20	220~240
Basic 25-8SL	8	4.5	180	50	25	220~240
Basic 32-8SL	8	6	180	50	32	220~240

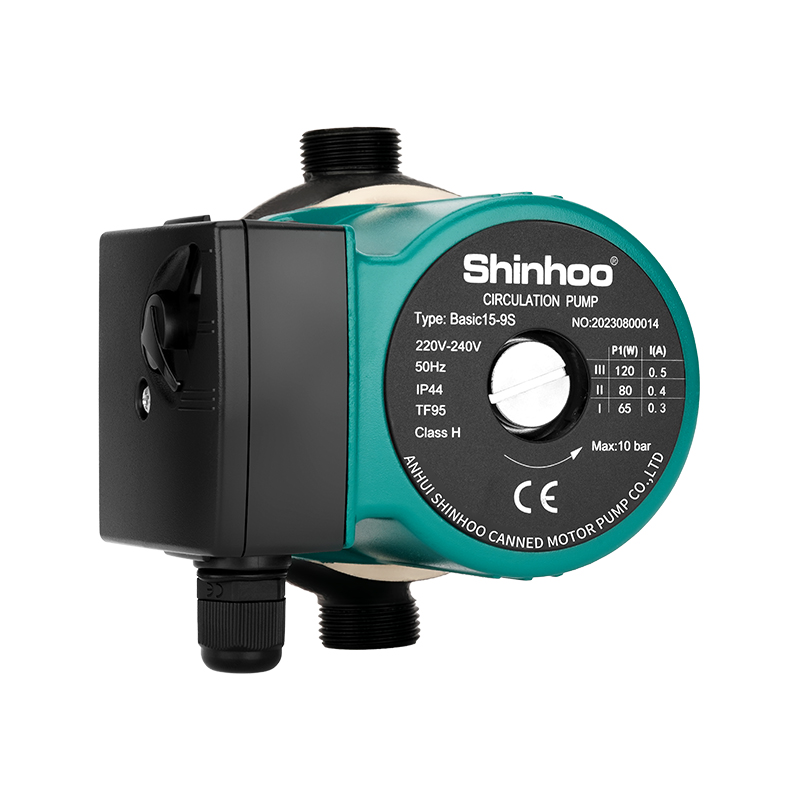

Basic 15-9S	9	1.8	120/80/65	50/60	15	220~240/115

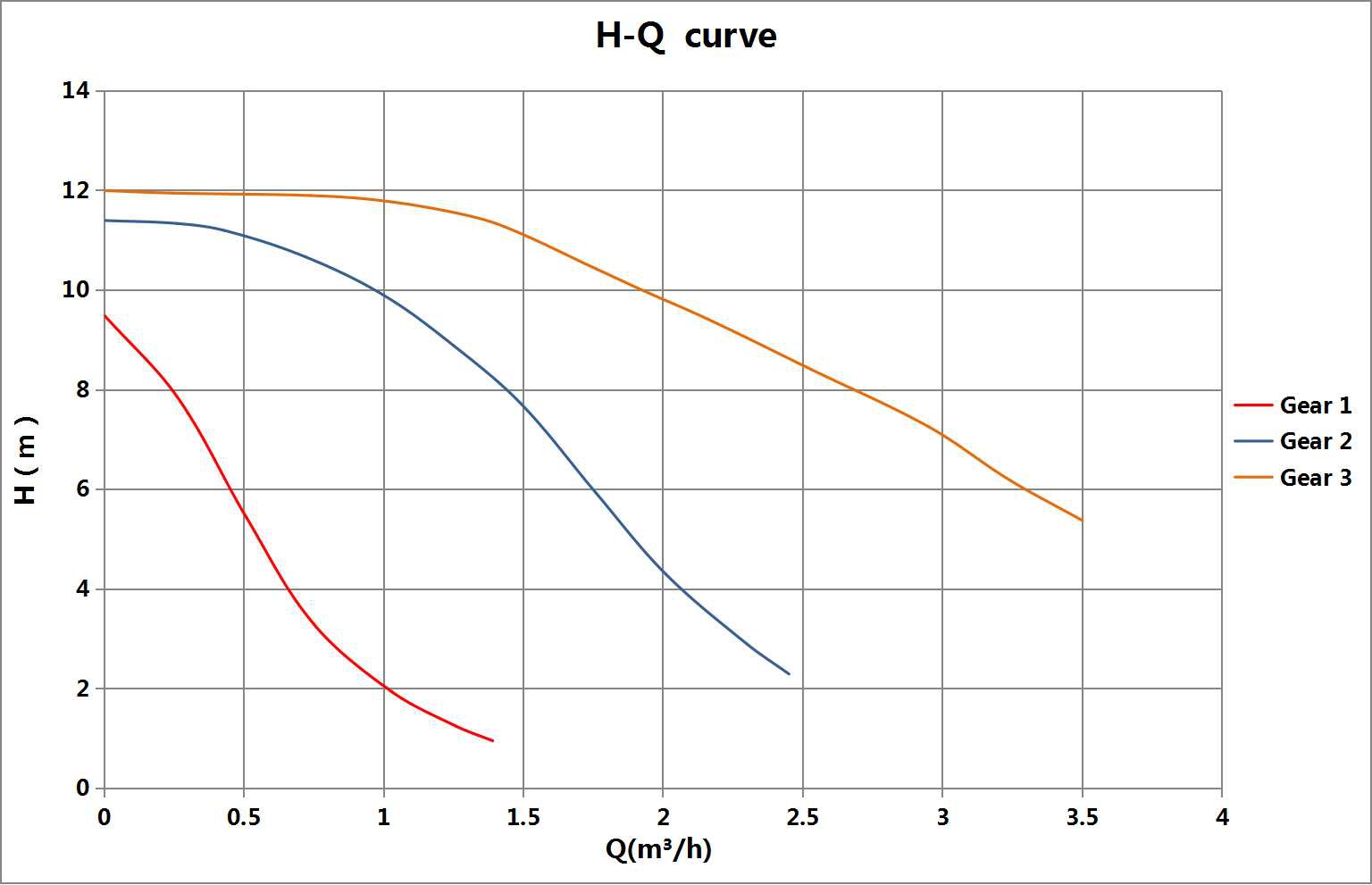

Basic 15-12S	12	3.5	270/240/160	50/60	15	220~240/115

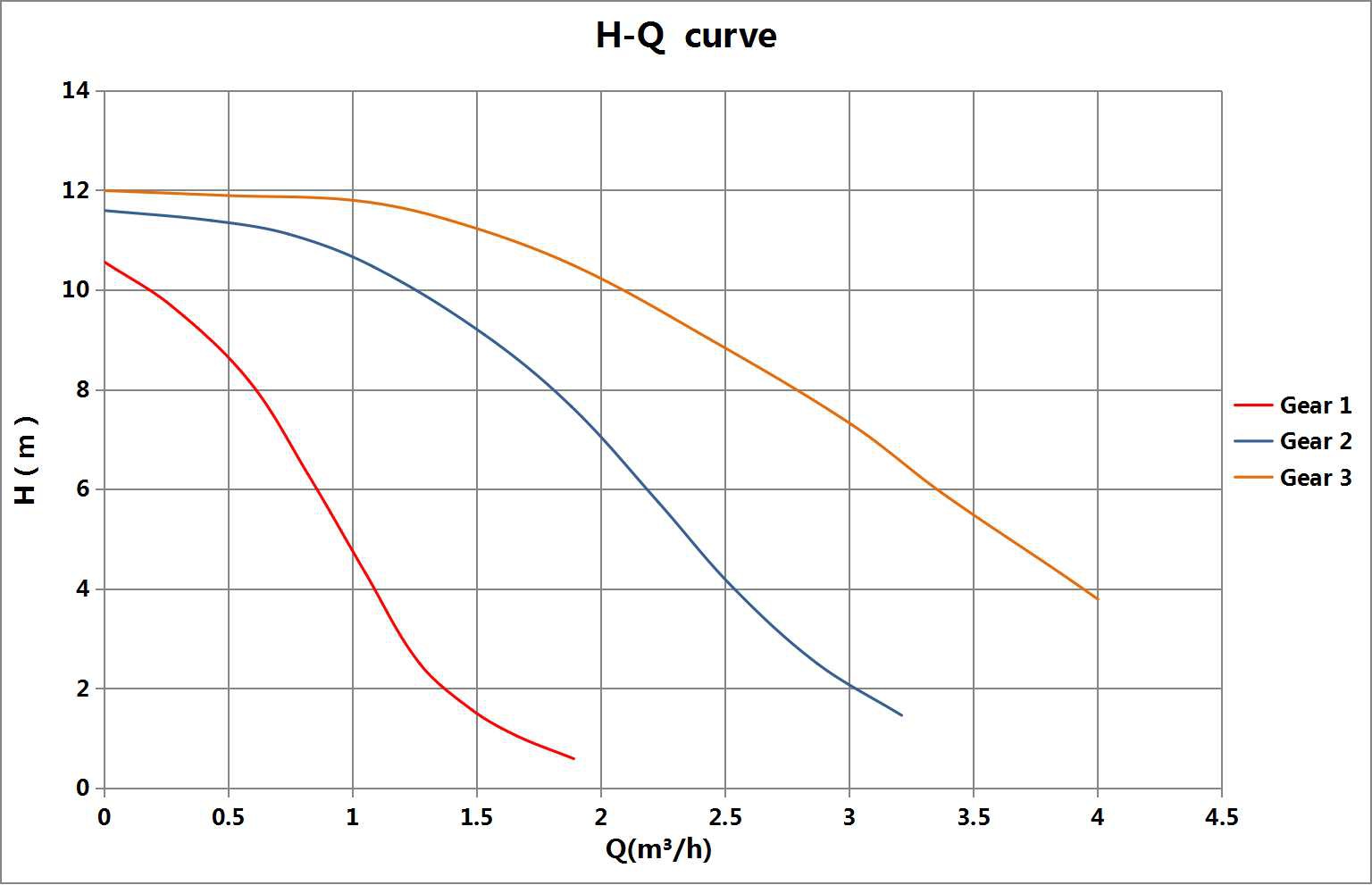

Basic 20-12S	12	4	270/240/160	50/60	20	220~240/115

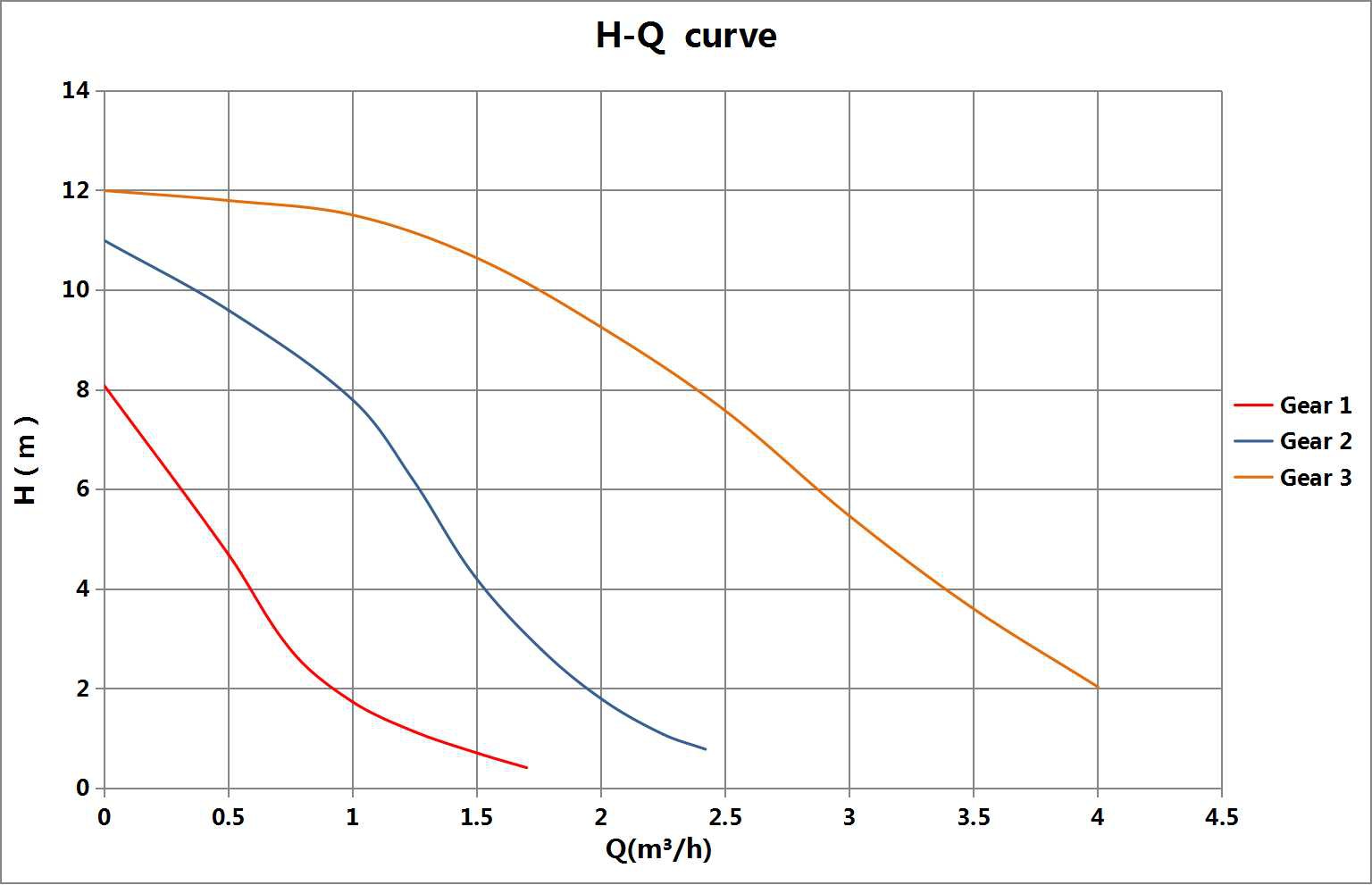

Basic 25-12S	12	4	270/240/160	50/60	25	220~240/115

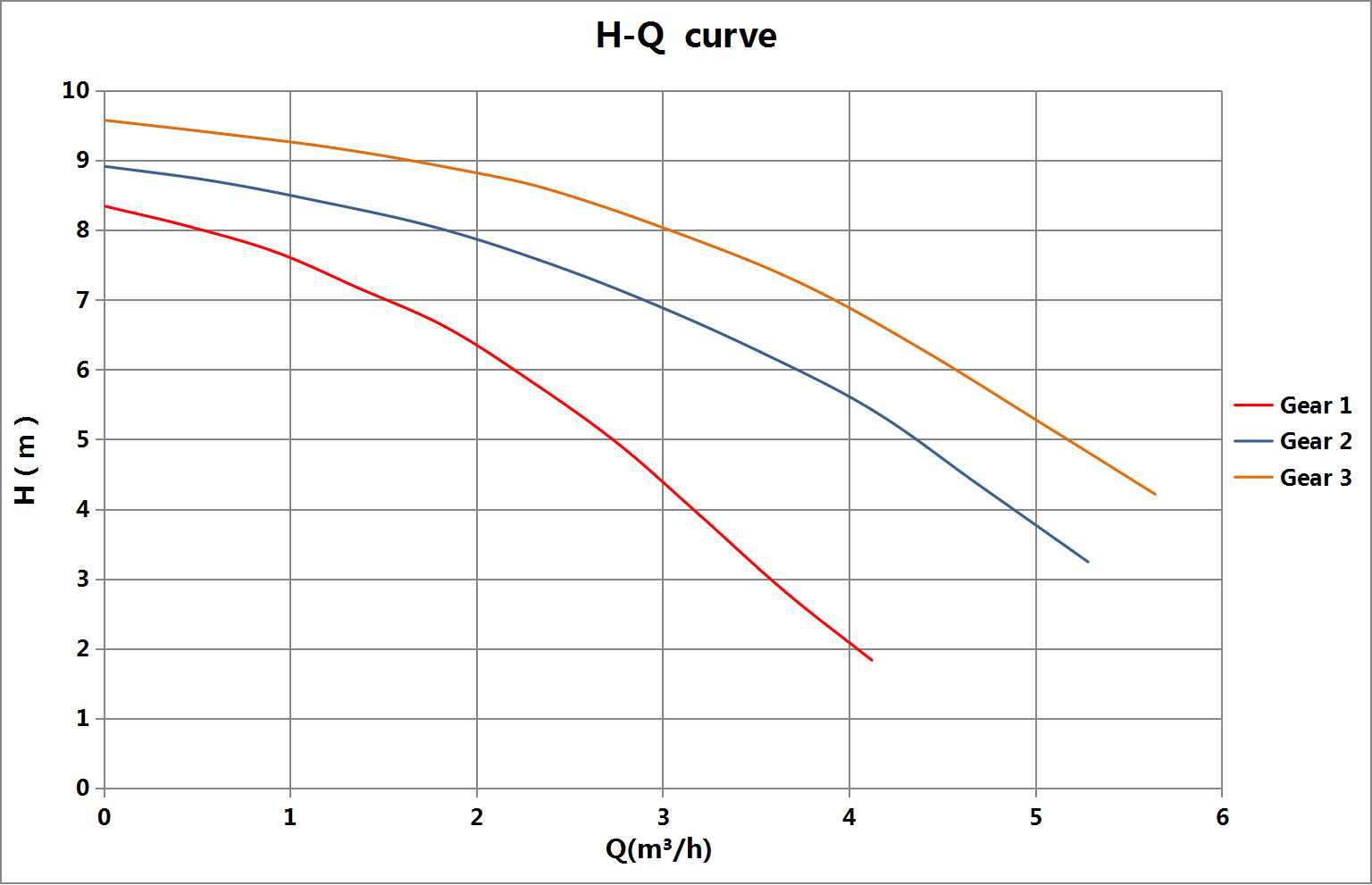

Basic 25-9SXL	9	7	300	50	25	220~240

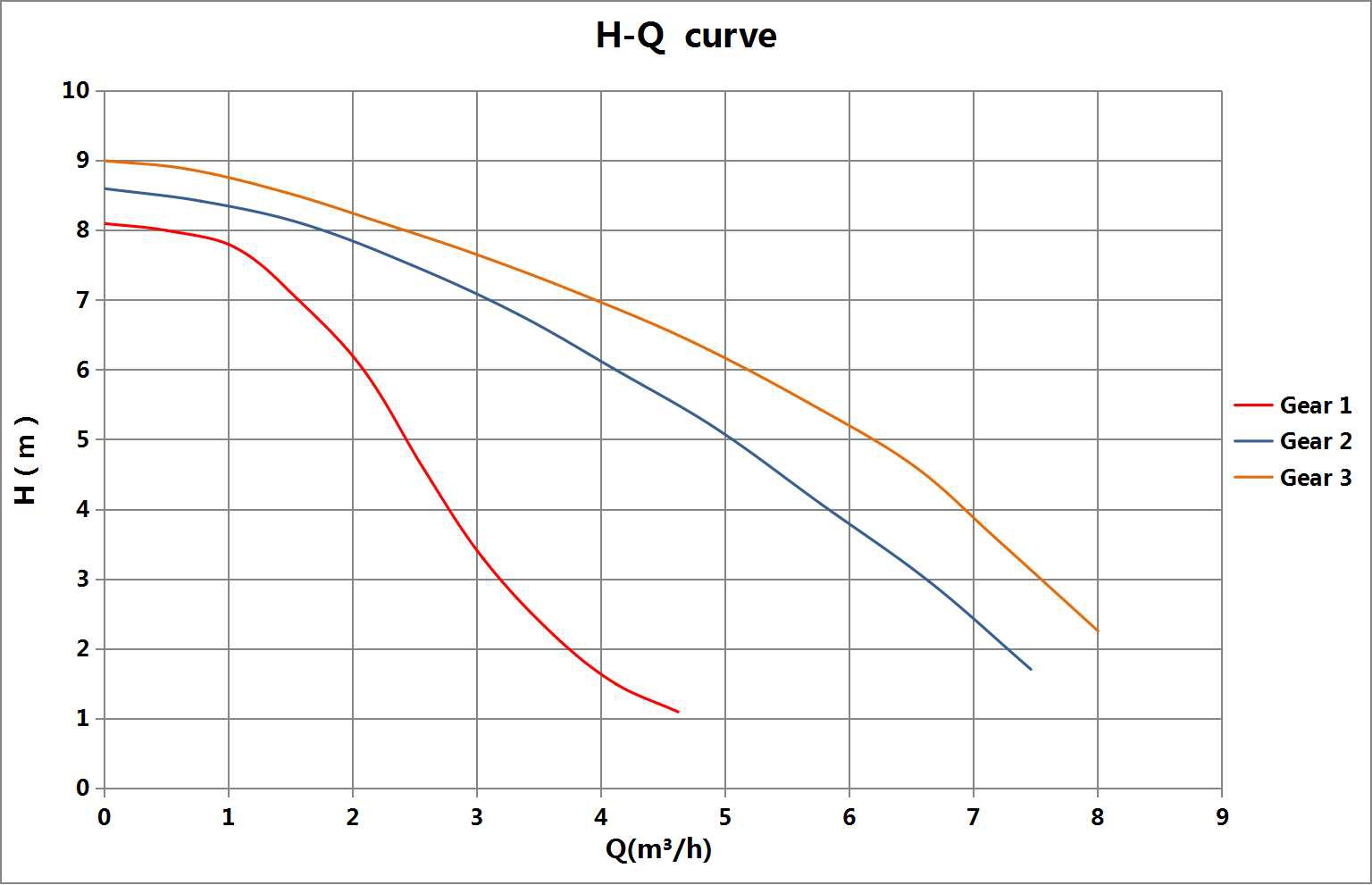

Basic 32-9SXL	9	8	300	50	32	220~240

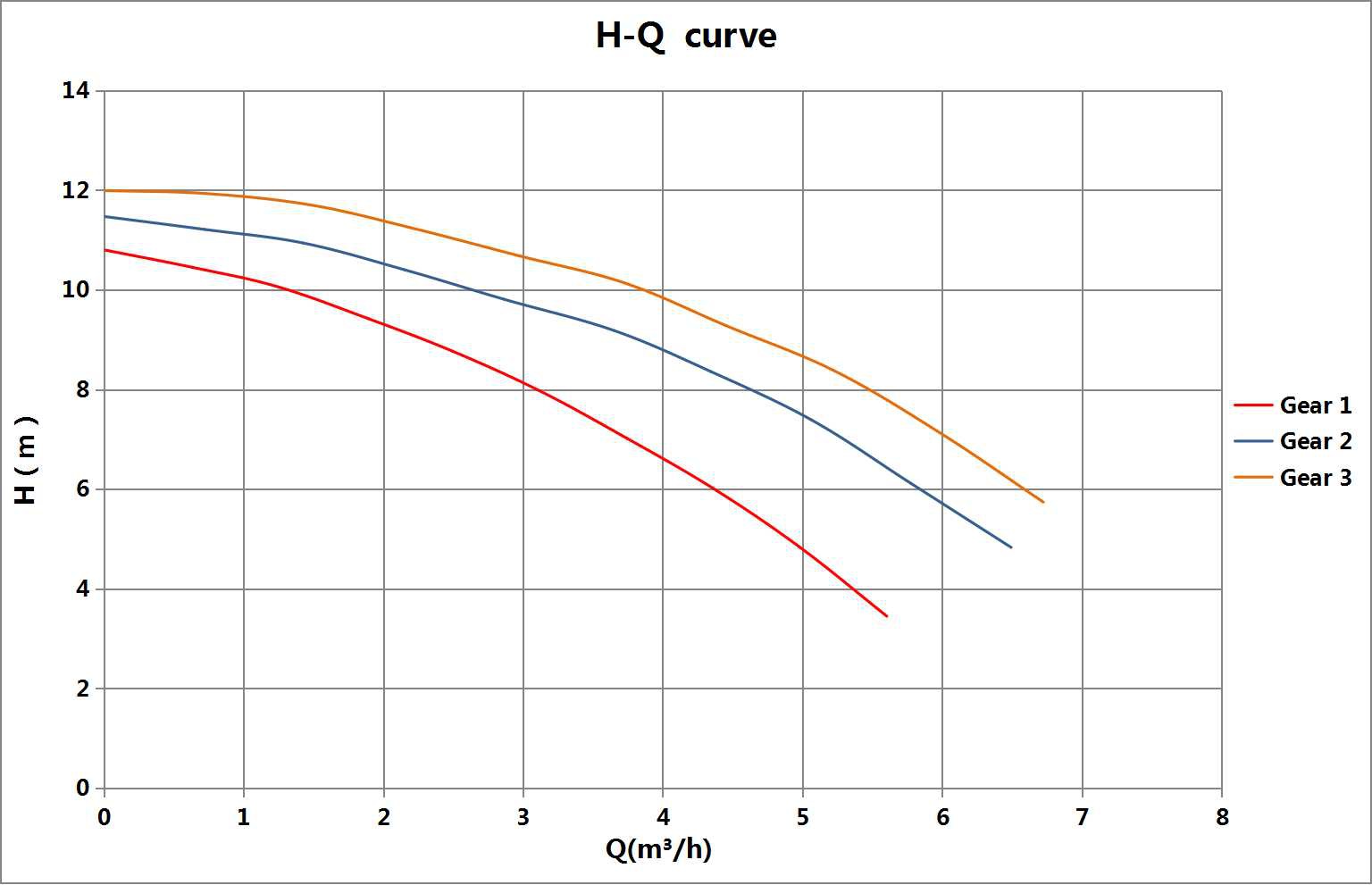

Basic 25-12SXL	12	7	500	50	25	220~240
Basic 25-12S(500W)	12	6.5	500	50	25	220~240

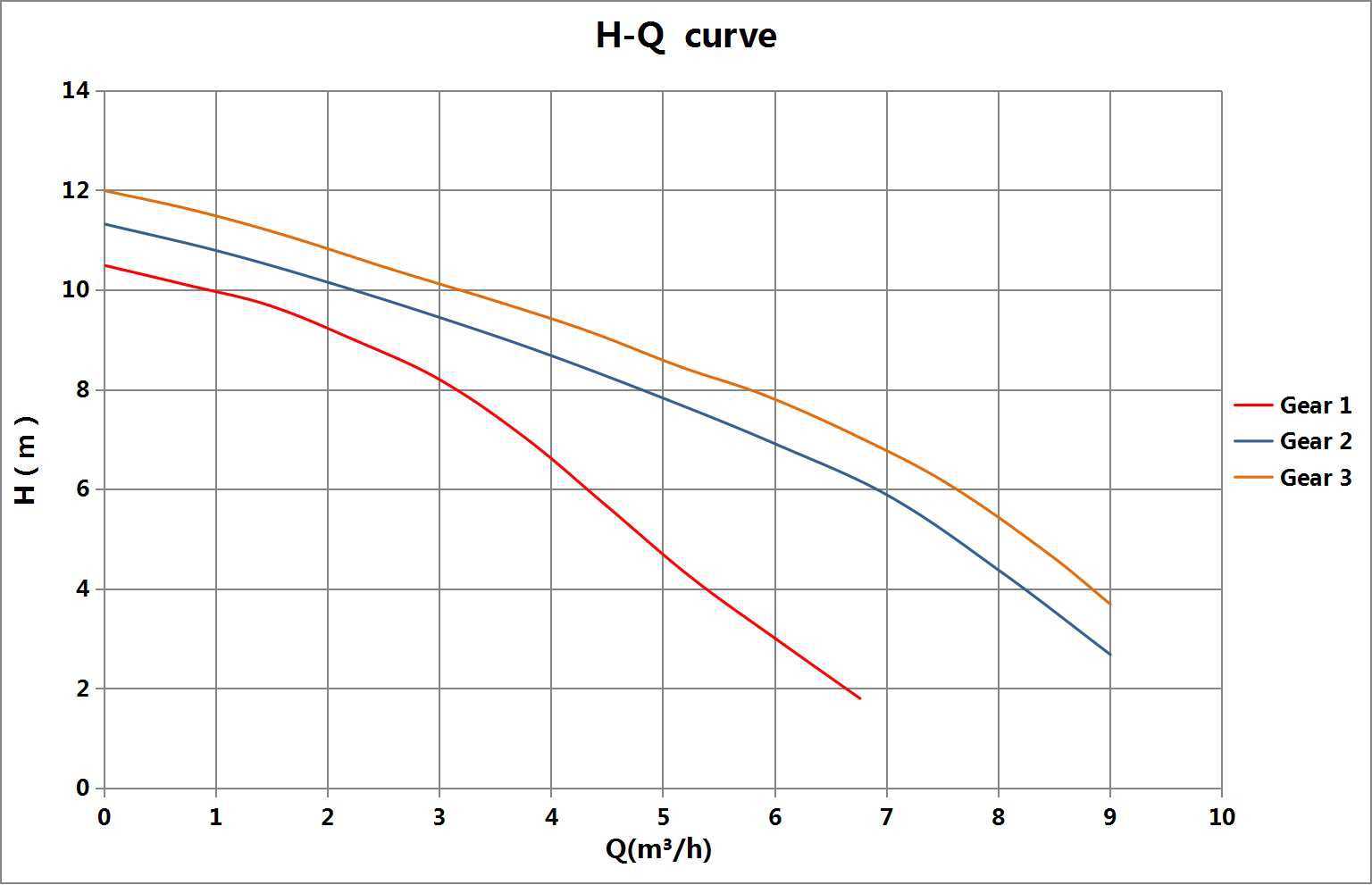

Basic 32-12SXL	12	10	500	50	32	220~240

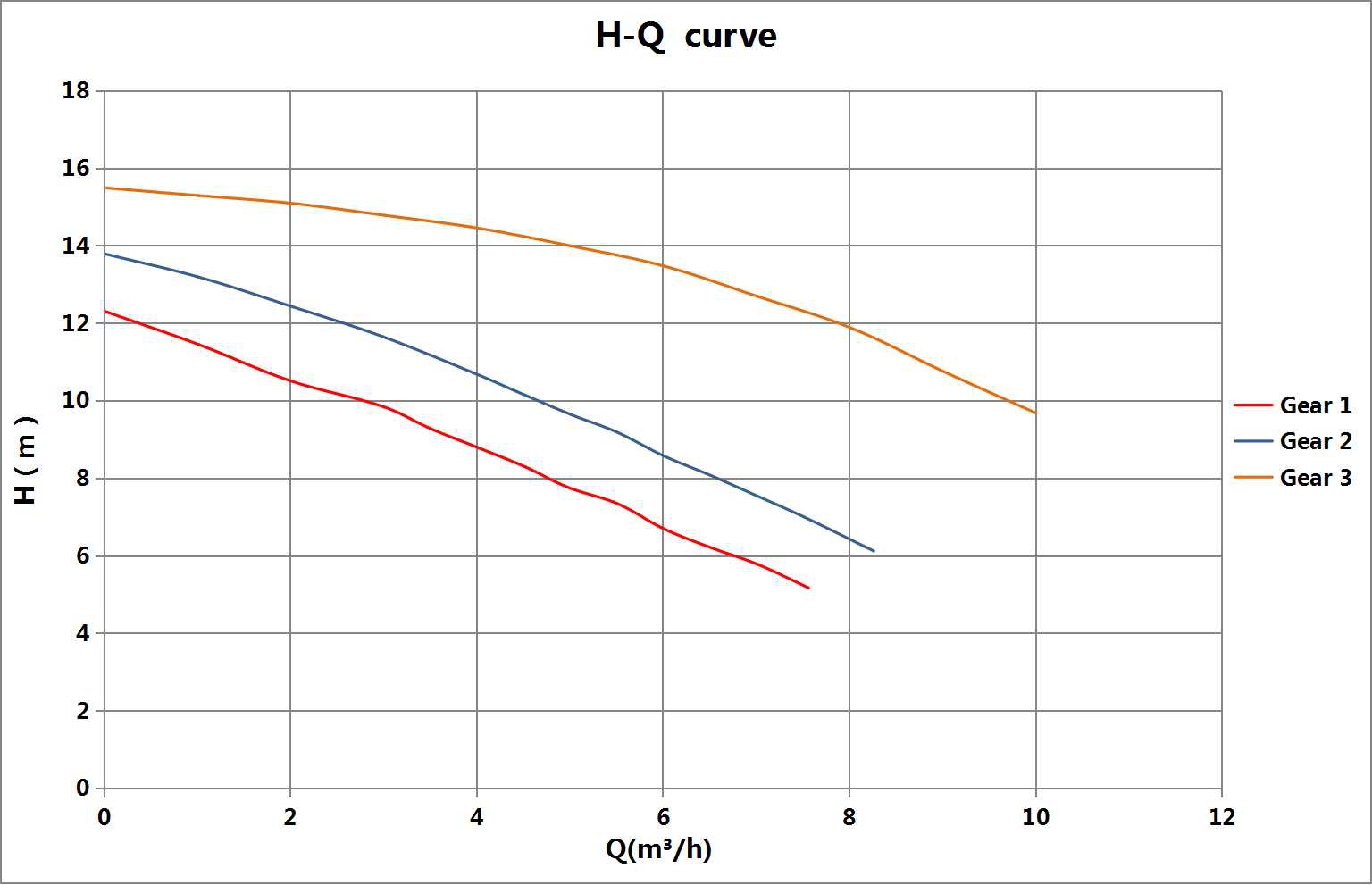

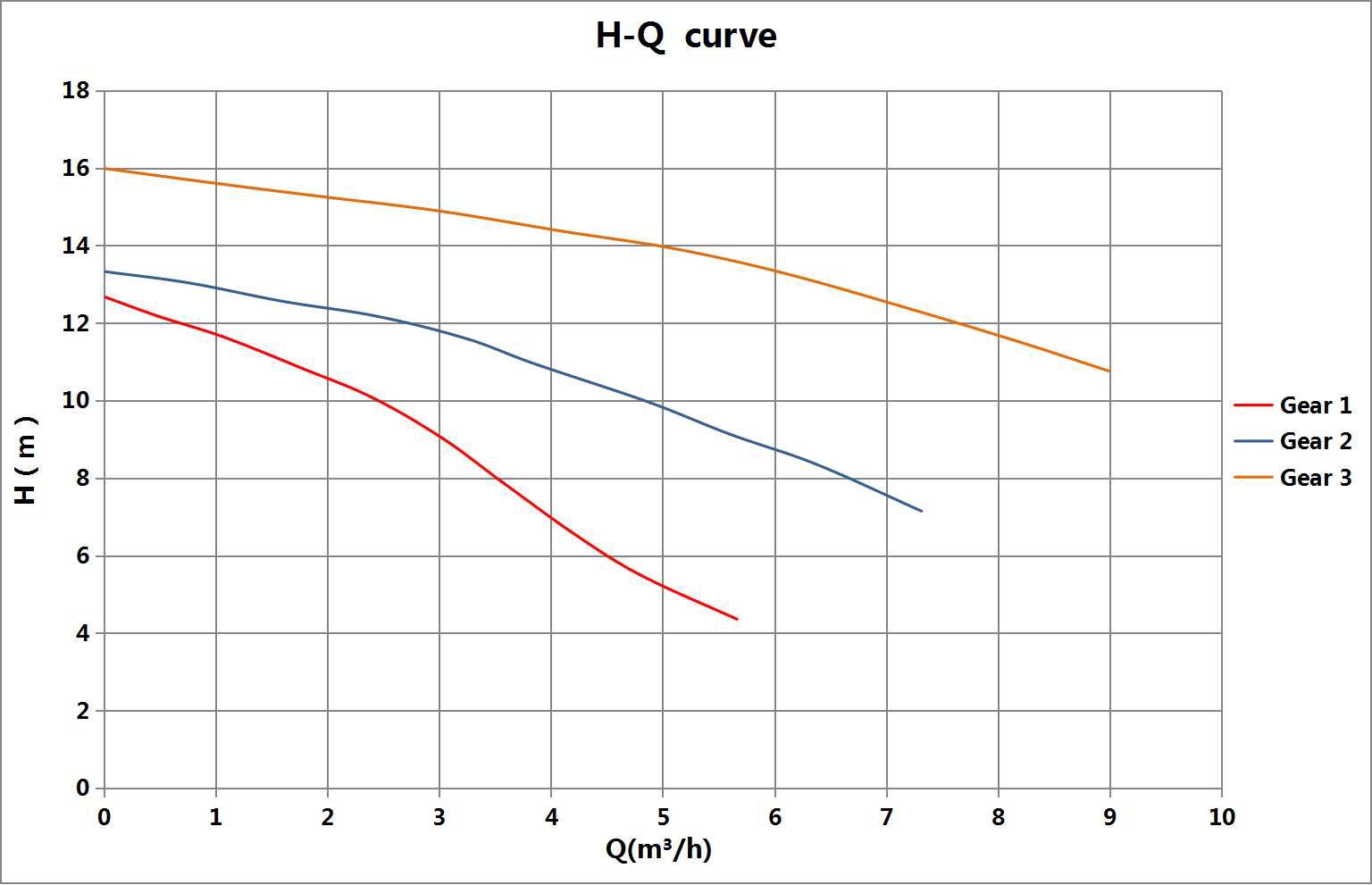

Basic 25-16S	16	10.5	700	50	25	220~240
Basic 32-16S	16	12	700	50	32	220~240

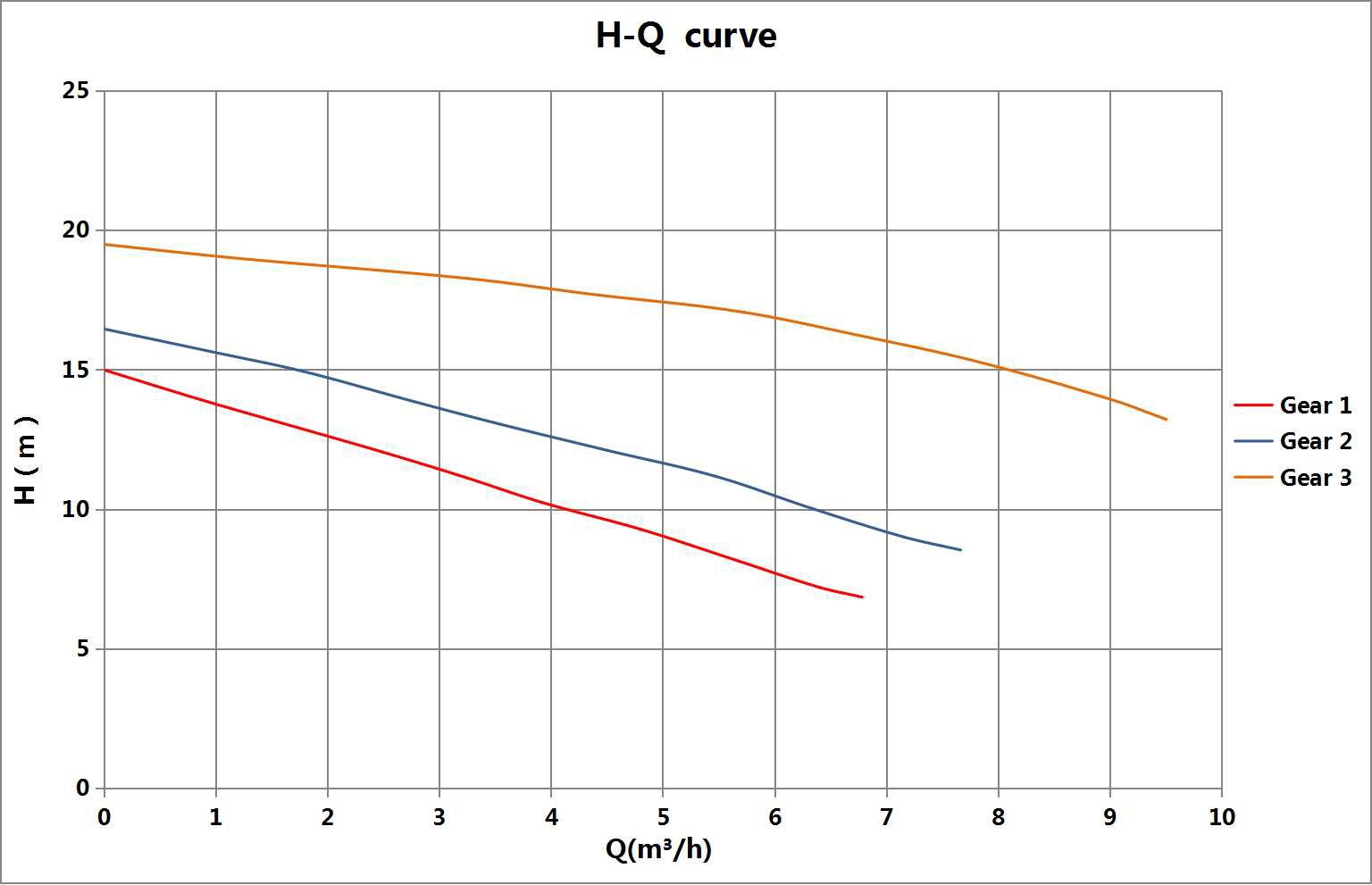

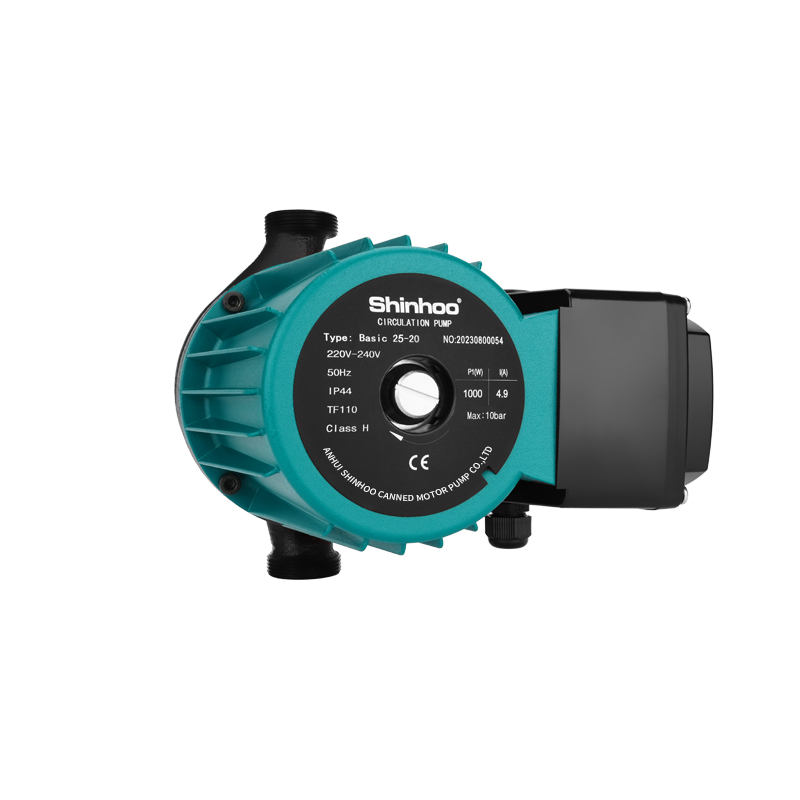

Basic 25-20S	20	12	1000	50	25	220~240
Basic 32-20S	20	13	1000	50	32	220~240

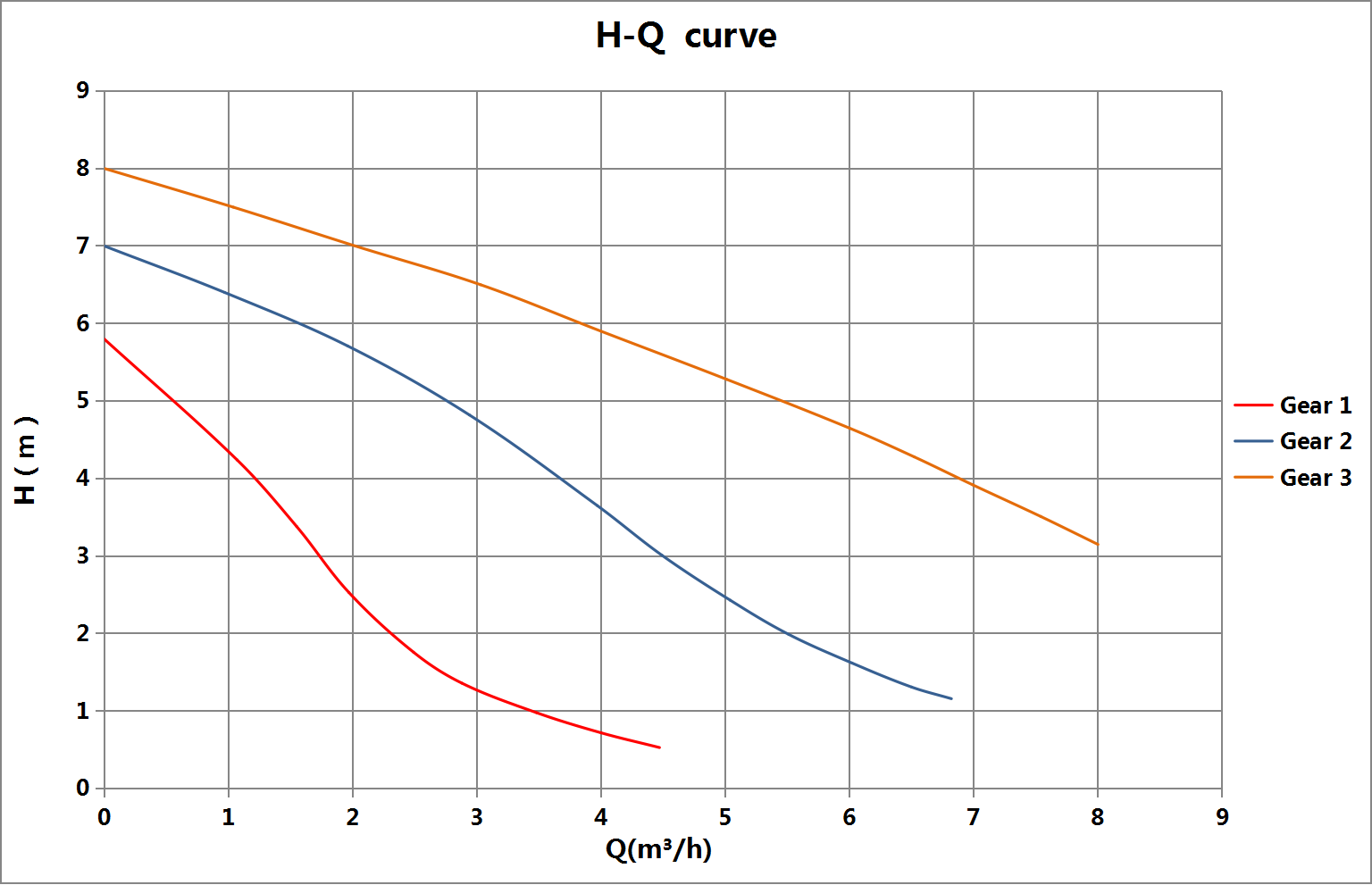

Basic 32-8SF	8	8	245	50/60	32	220~240/115
Basic 40-8SF	8	8	245	50/60	40	220~240/115
Basic 32-9SFXL	9	8	300	50/60	32	220~240/115
Basic 32-12SFXL	12	9	500	50/60	32	220~240/115

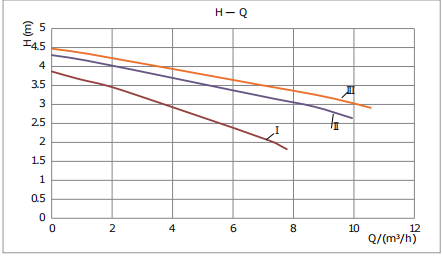

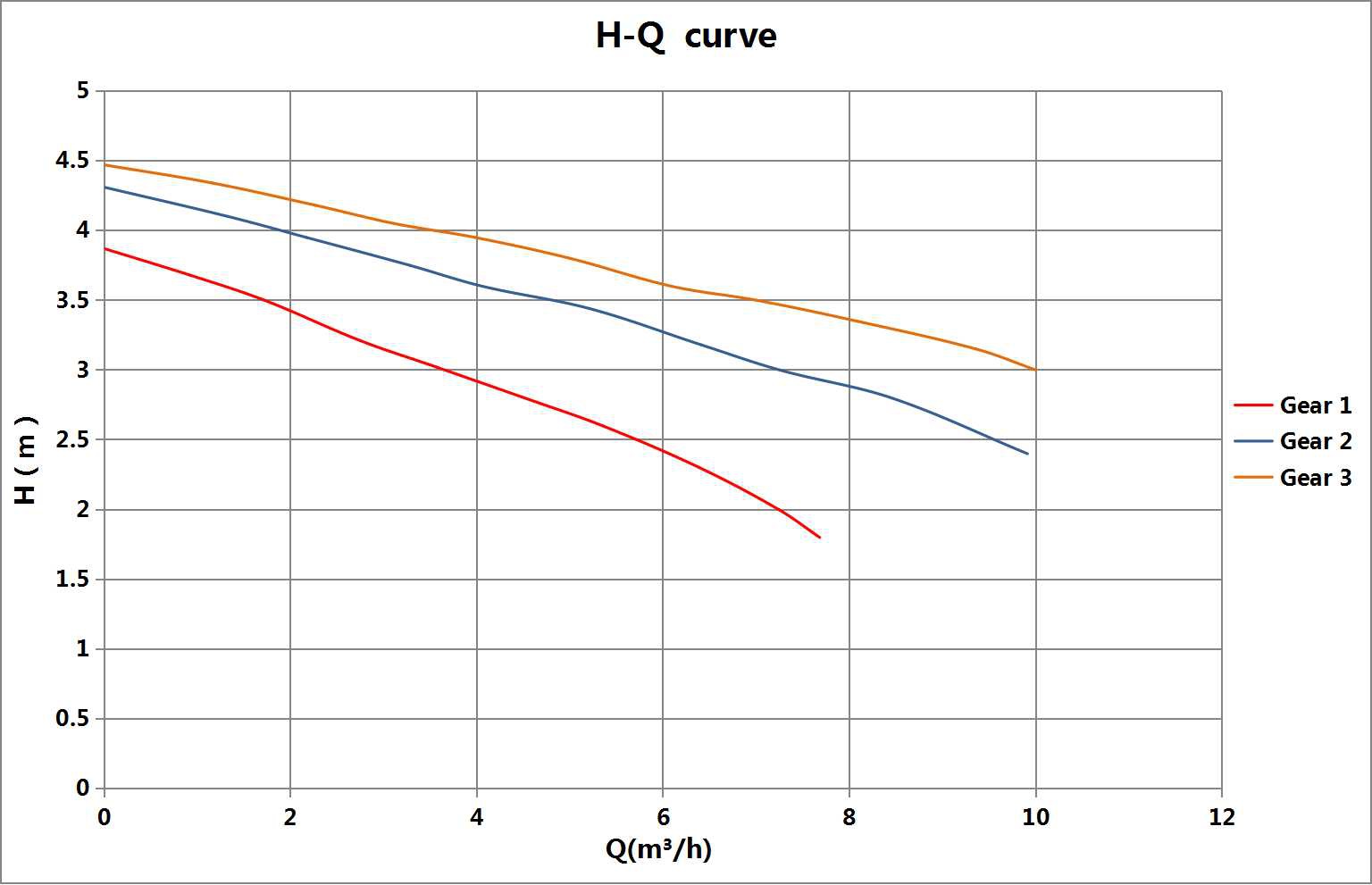

Basic 40-4.5SFXL	4.5	10	300	50/60	40	220~240/115

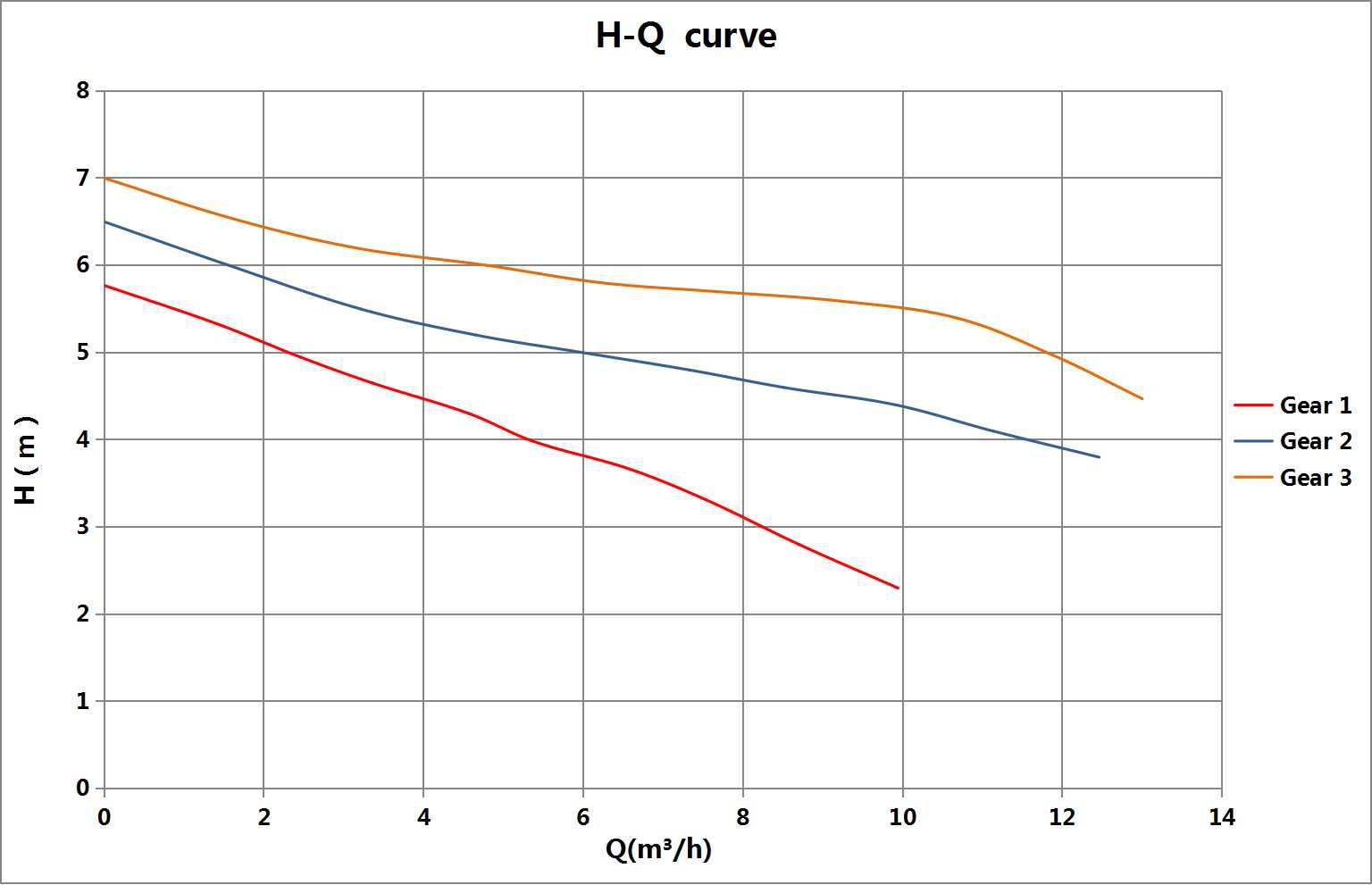

Basic 40-6SFXL	5	3	500	50/60	40	220~240/115

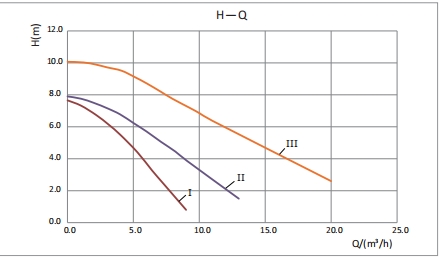

Basic 40-10SF Pro 230V	10	20	500	50/60	40	220~240

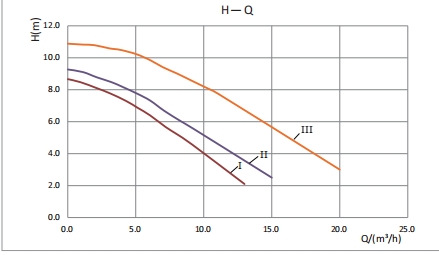

Basic 40-10SF Pro 380V	10	20	500	50	40	380

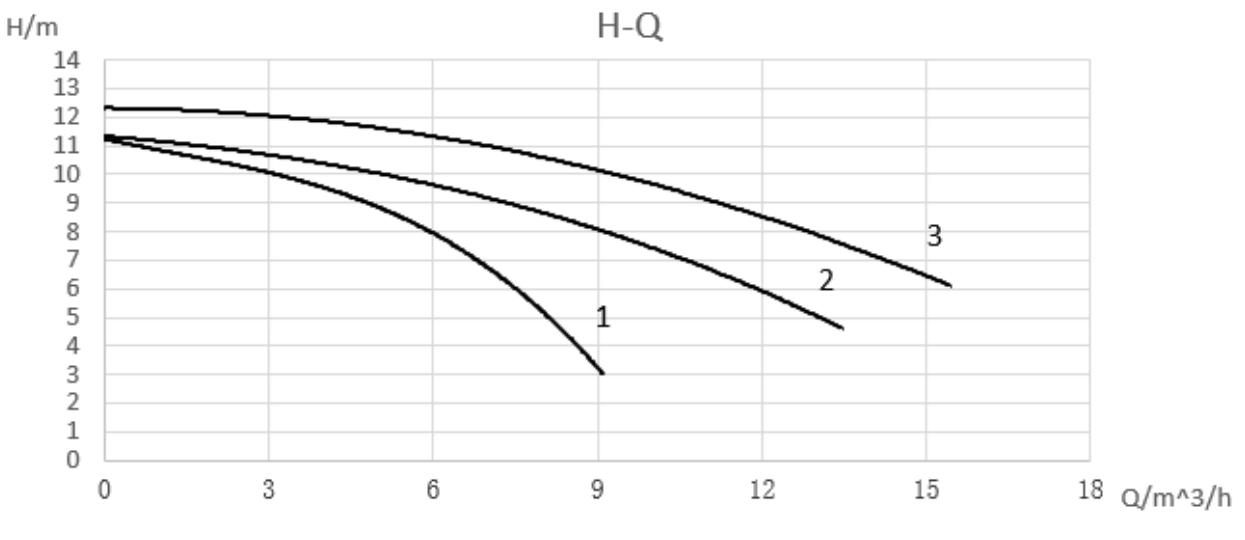

Basic 40-12SF Pro 230V	12	21	850	50/60	40	220~240

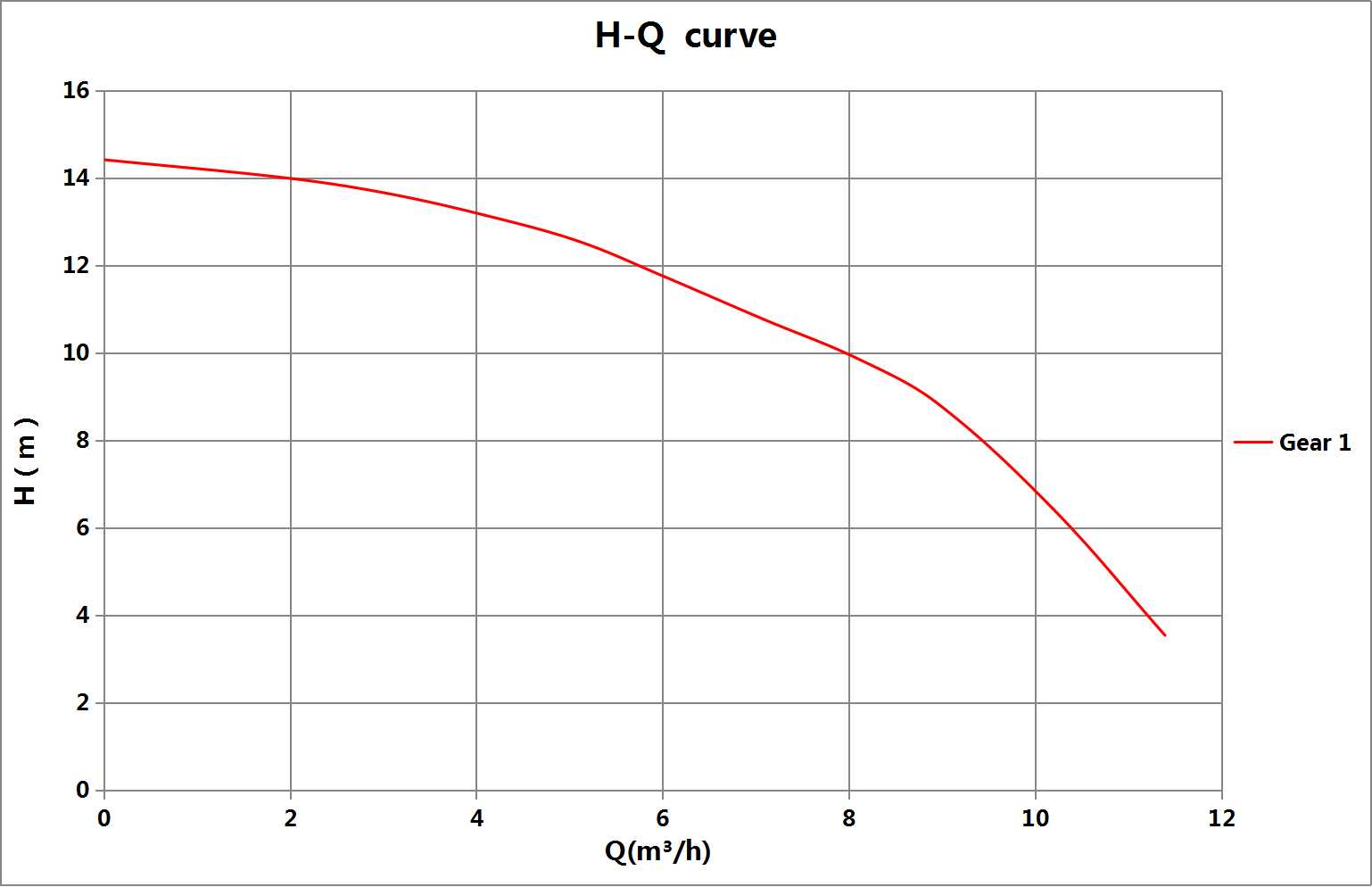

Basic 40-12SF Pro 380V	12	21	850	50	40	380

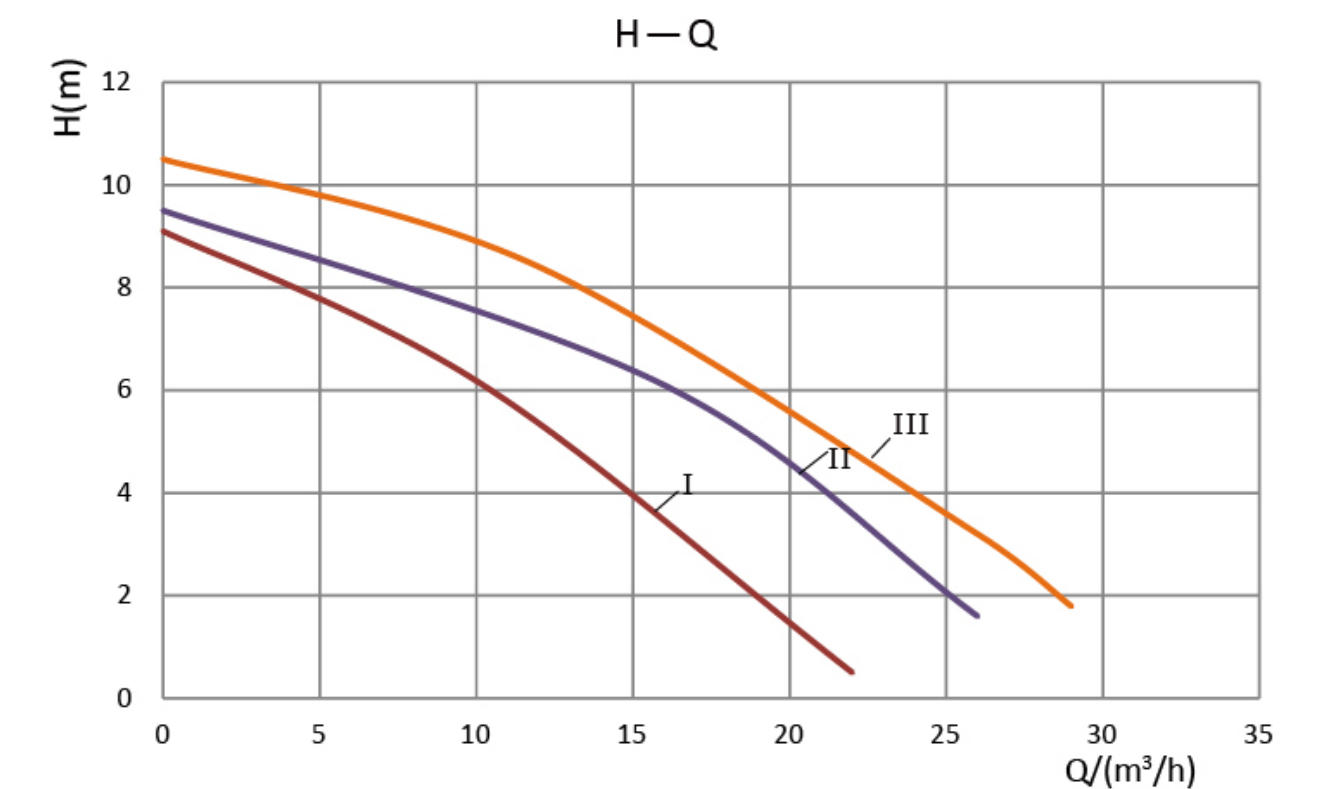

Basic 50-10SF Pro 230V	10	29	850	50/60	50	220~240

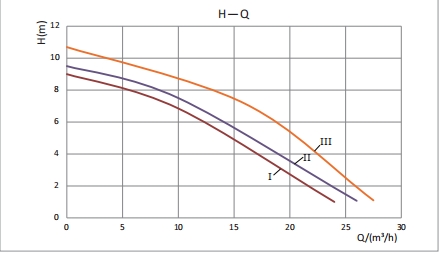

Basic 50-10SF Pro 380V	10	27	850	50	50	380

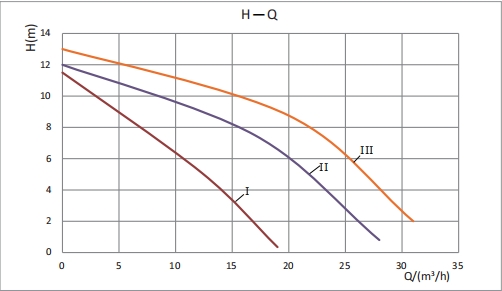

Basic 50-12SF Pro 230V	12	32	1100	50/60	50	220~240

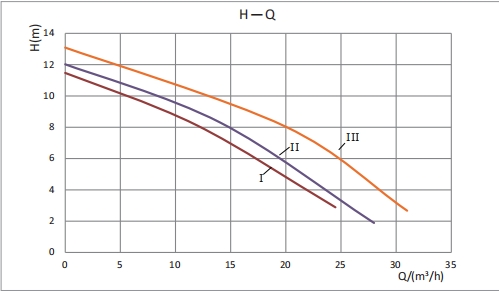

Basic 50-12SF Pro 380V	12	31	1100	50	50	380

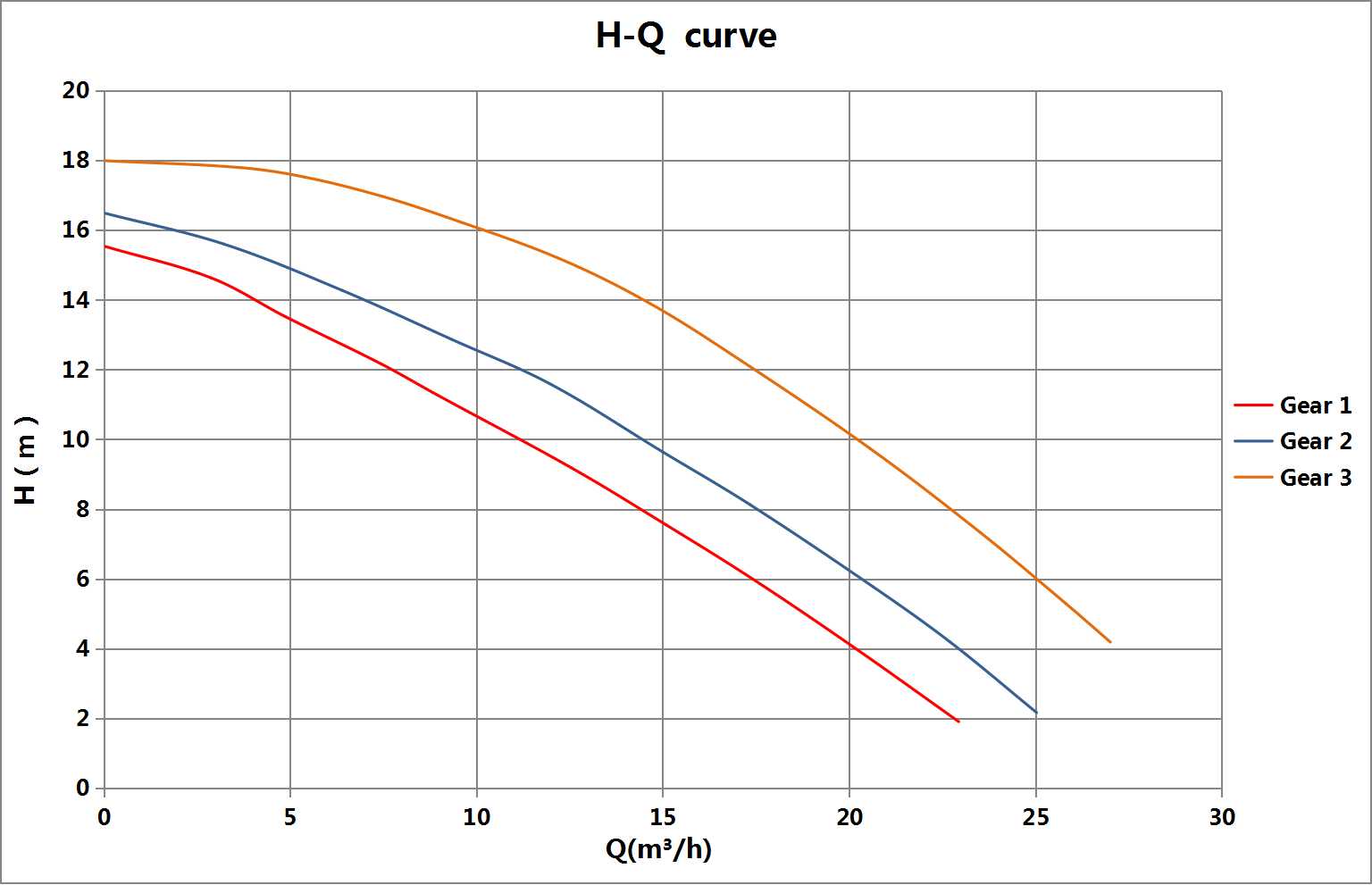

Basic 50-16SF Pro 230V	16	25	1300	50/60	50	220~240

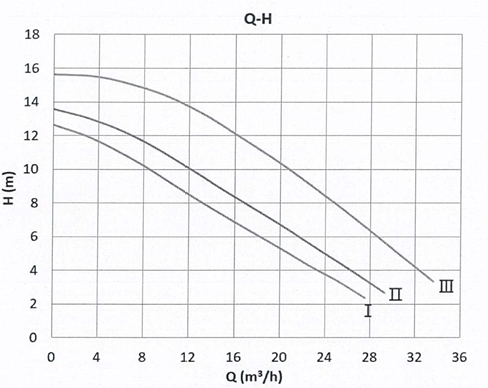

Basic 50-16SF Pro 380V	16	30	1300	50	50	380

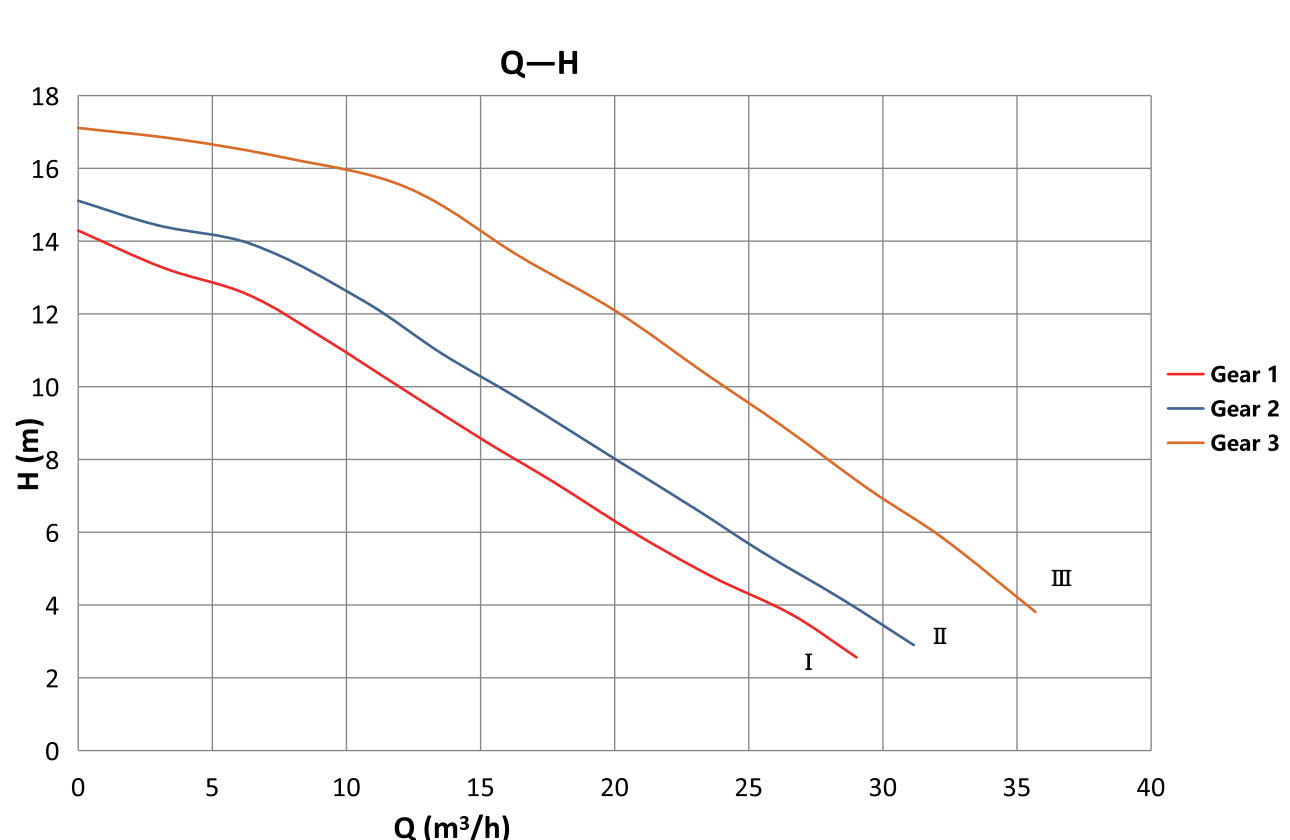

Basic 50-20SF Pro 380V	20	36	1500	50	50	380

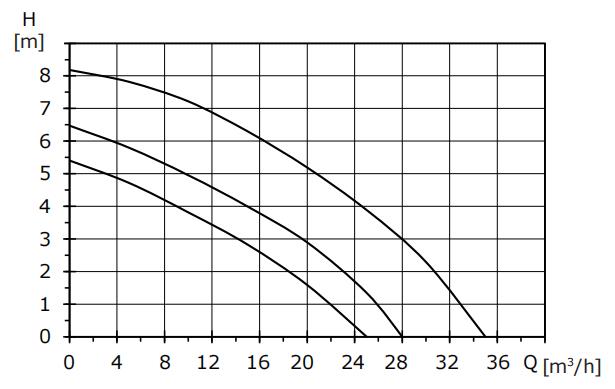

Basic 65-8SF Pro 230V	8	30	700	50/60	65	220~240

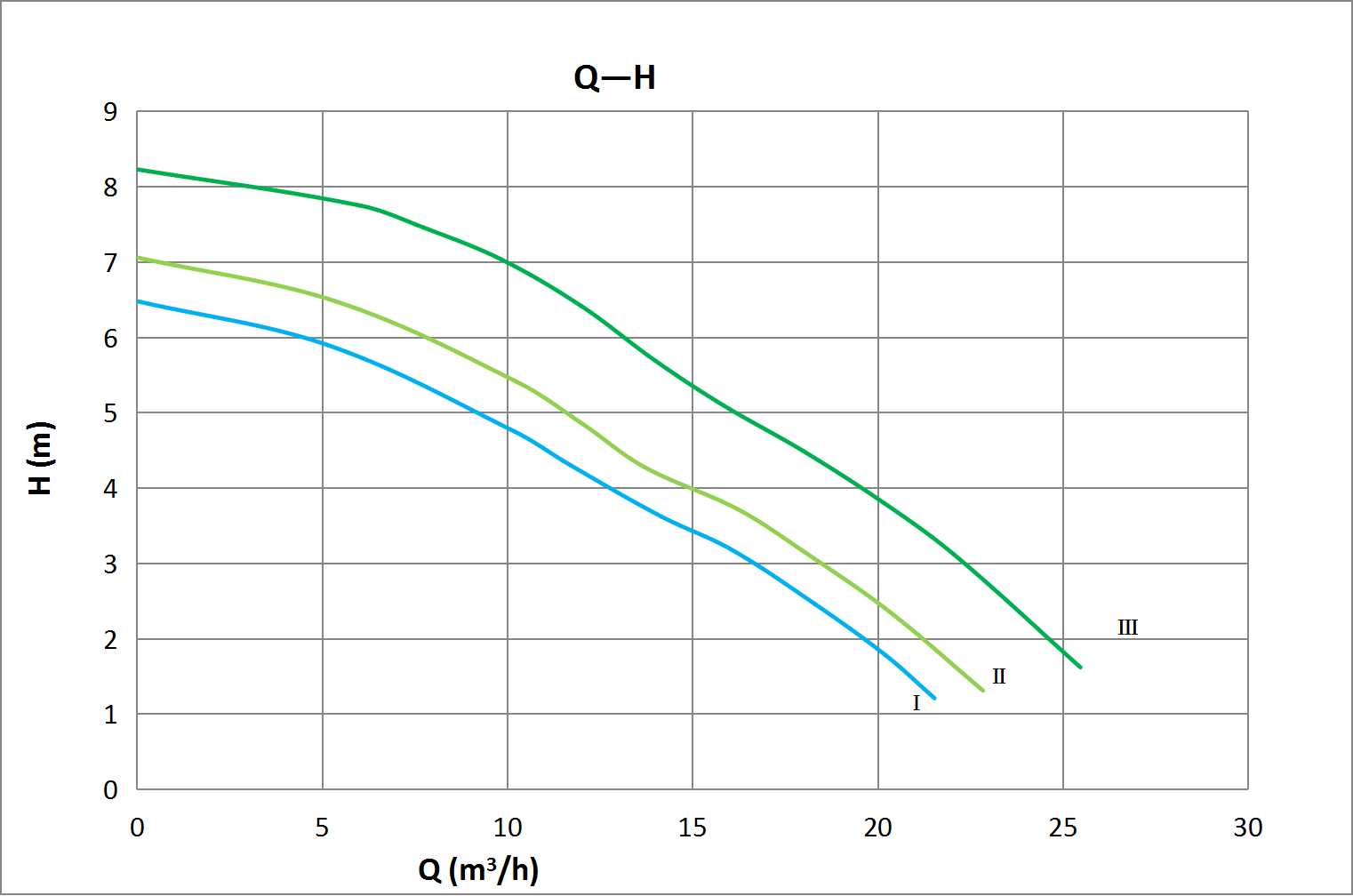

Basic 65-8SF Pro 380V	8.4	25	700	50	65	380

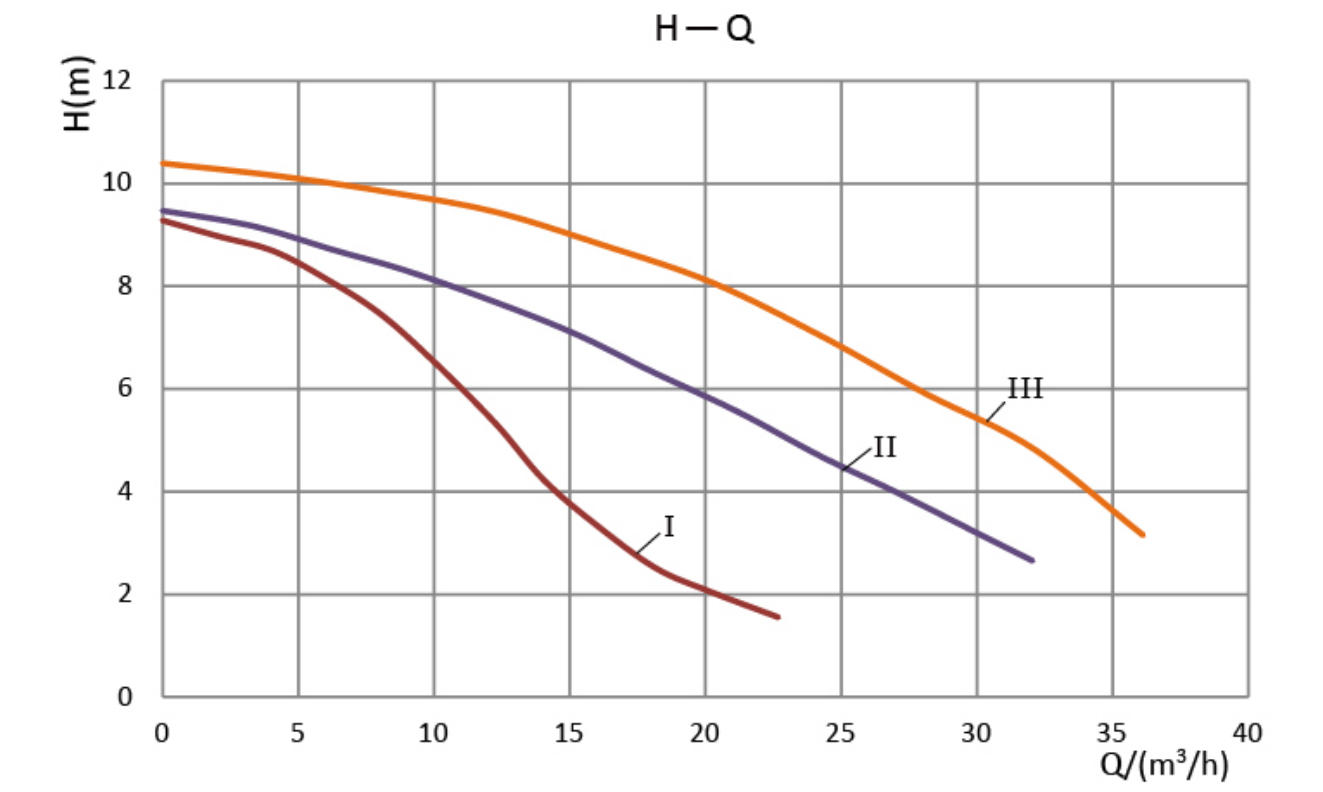

Basic 65-10SF Pro 230V	10	37	1200	50/60	65	220~240

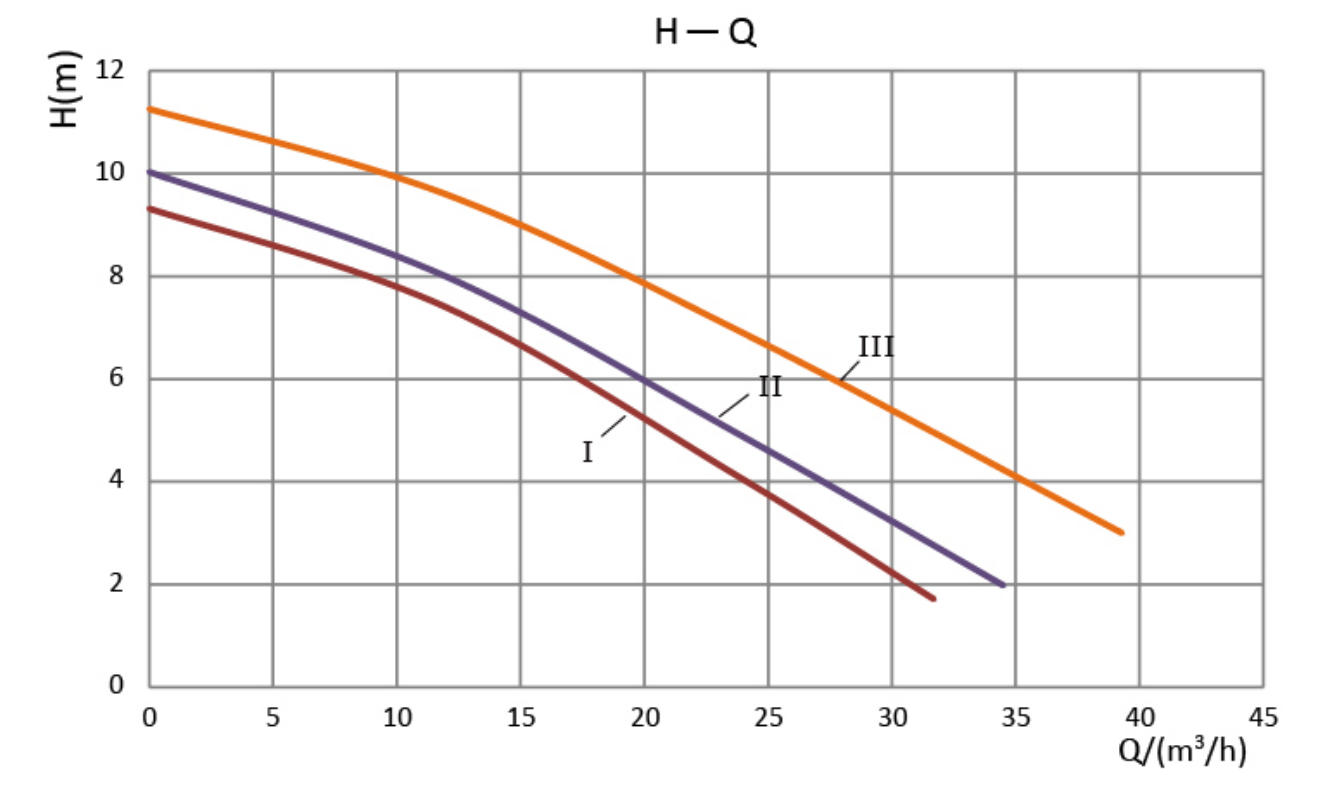

Basic 65-10SF Pro 380V	10	39	1200	50	65	380
Basic 65-12SF Pro 230V	12	40	1300	50/60	65	220~240

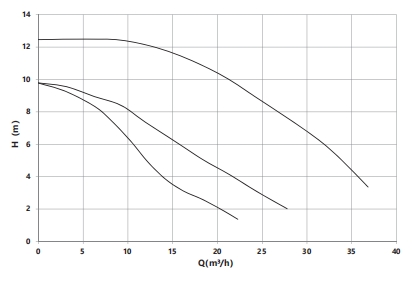

Basic 65-12SF Pro 380V	13	36	1300	50	65	380

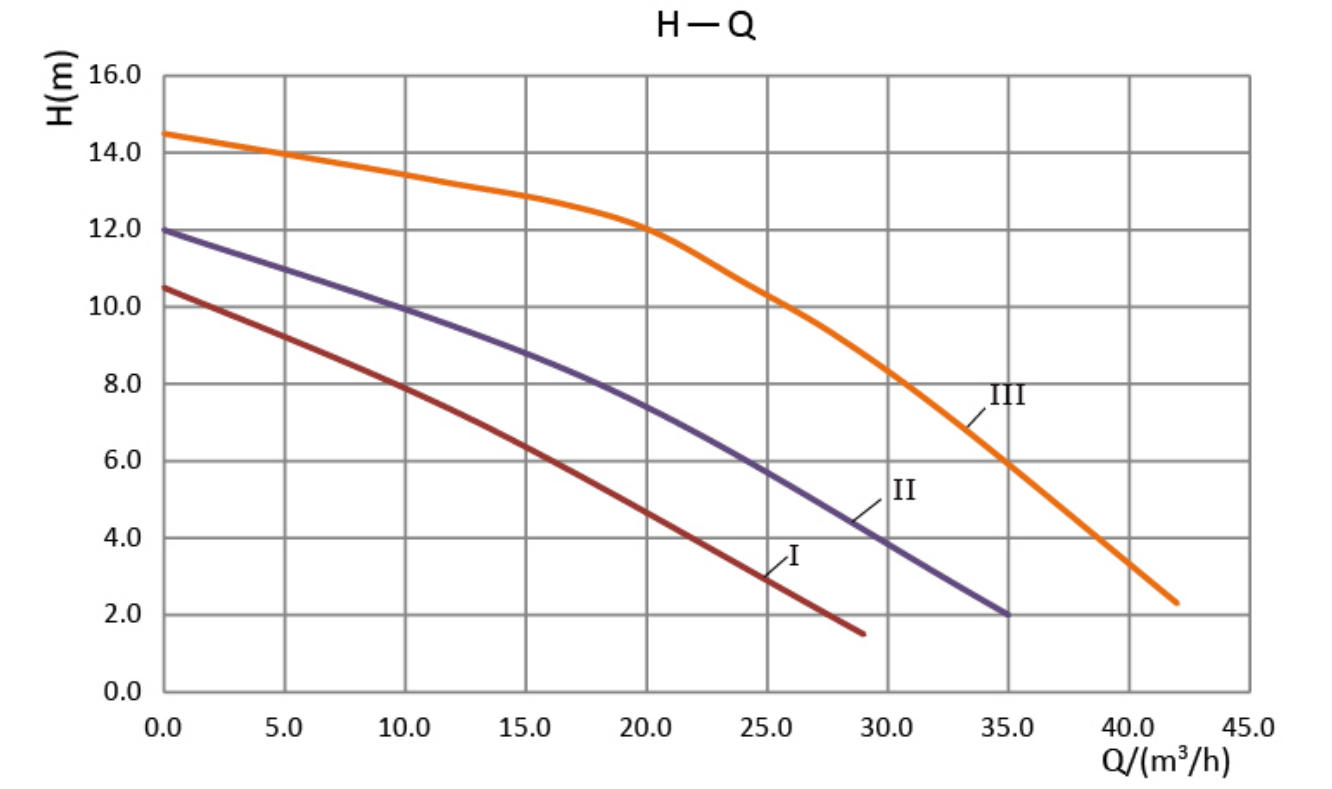

Basic 65-15SF Pro 380V	15	42	1500	50	65	380

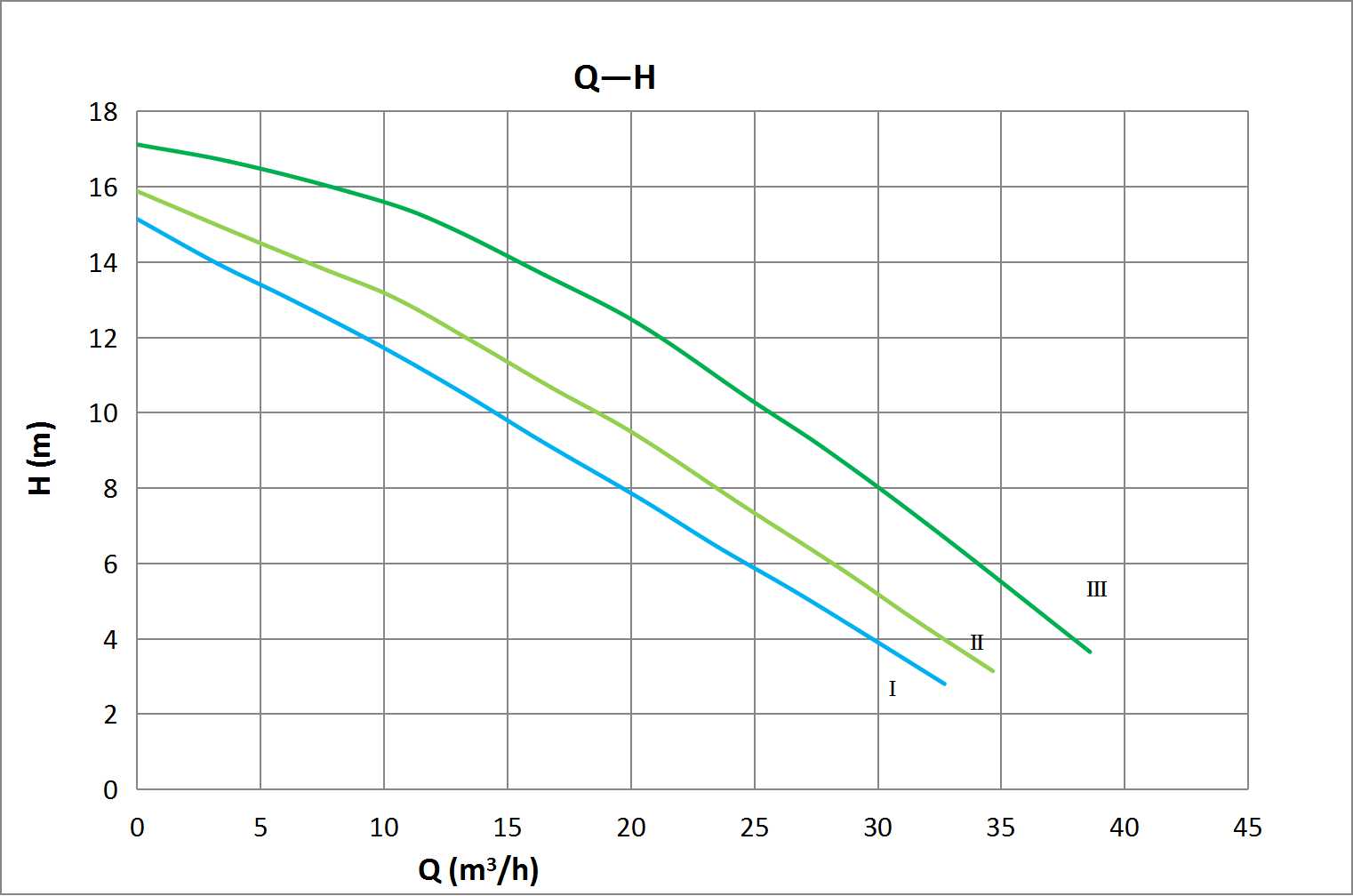

Basic 65-18SF Pro 380V	18	39	1800	50	65	380
Basic 80-8SF 230V	10	38	1000	50/60	80	220~240

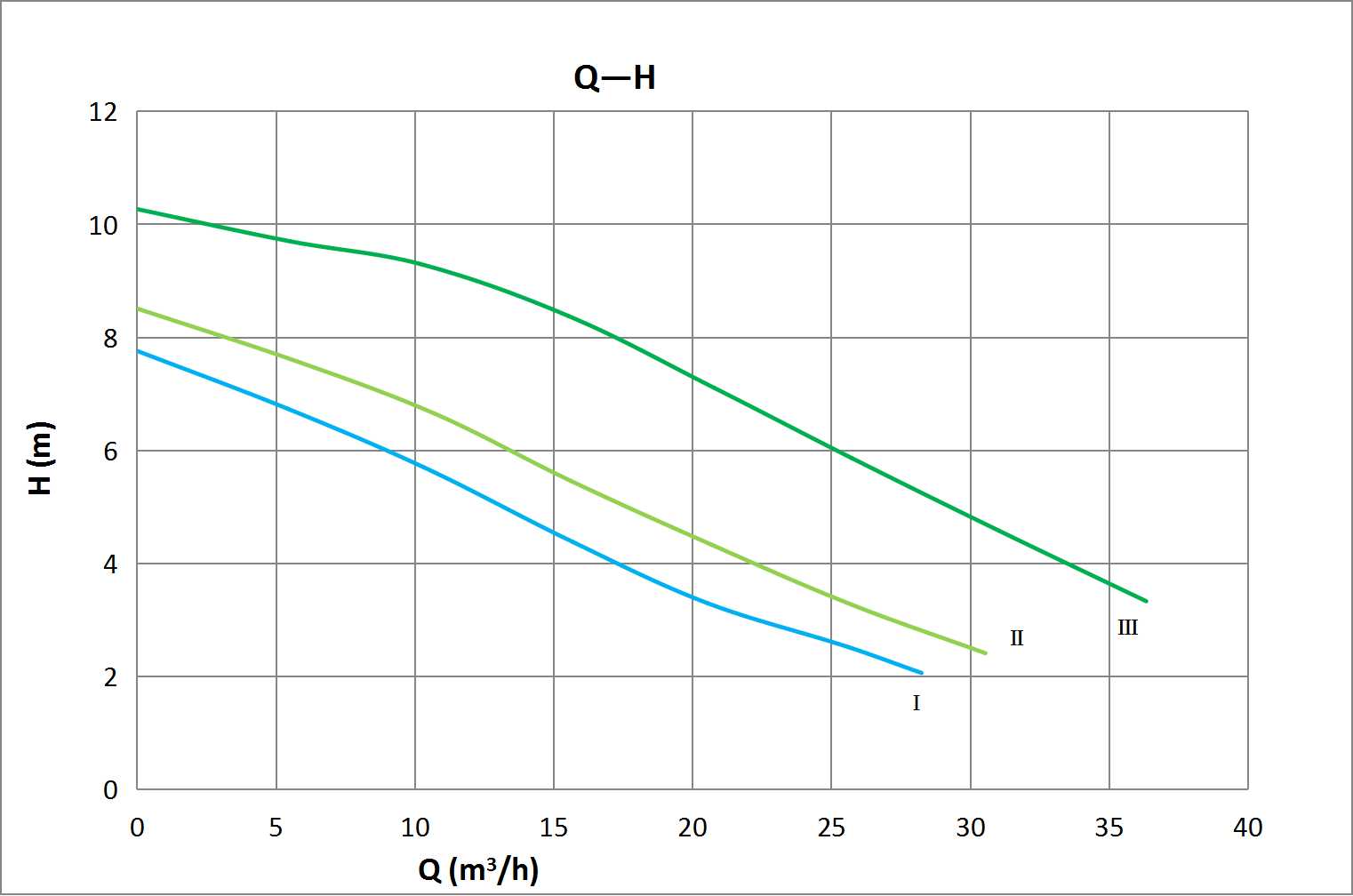

Basic 80-8SF Pro 380V	8	32	1000	50	80	380

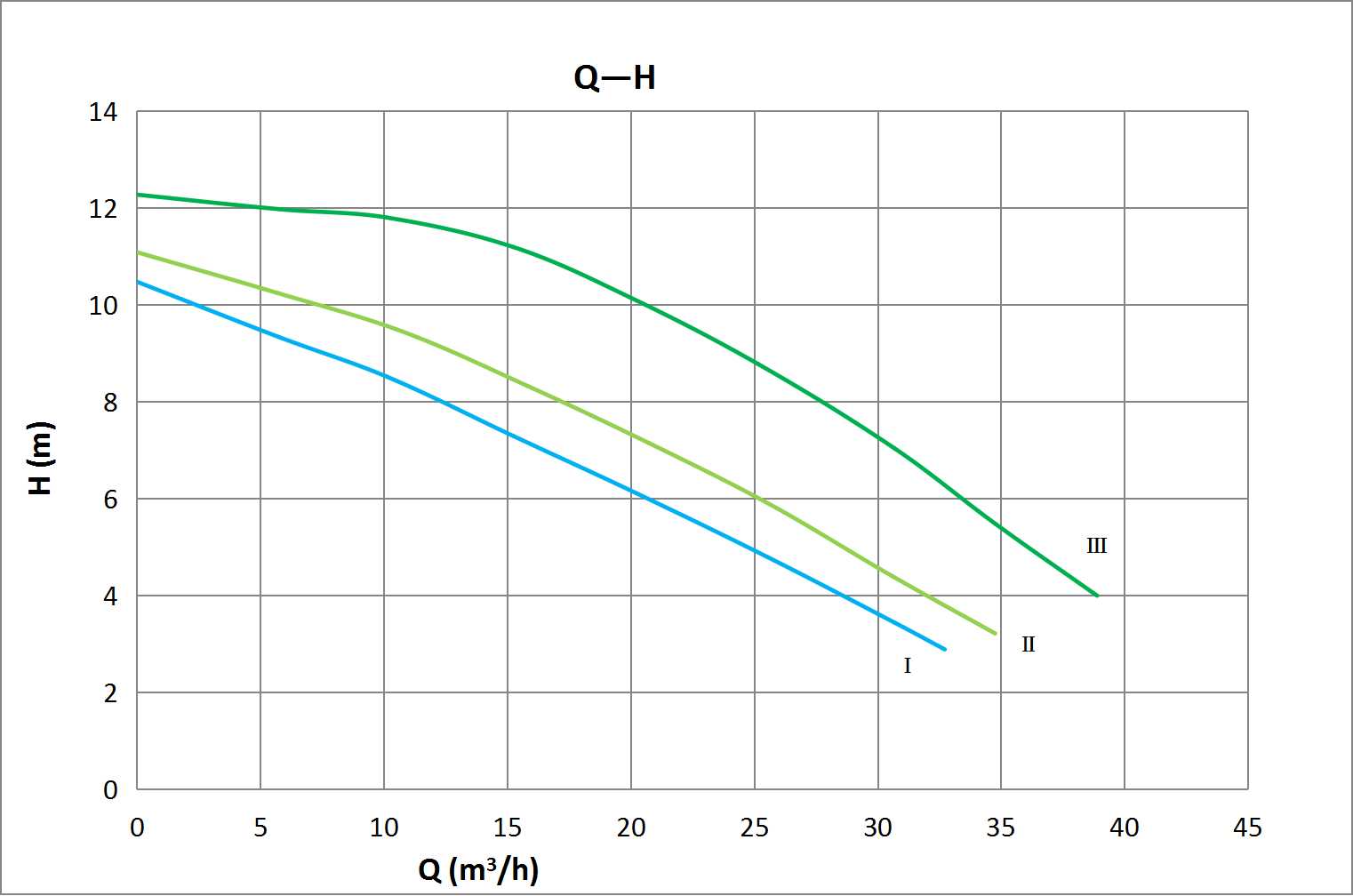

Basic 80-10SF Pro 230V	10	32	1300	50/60	80	220~240
Basic 80-10SF Pro 380V	10	35	1300	50	80	380

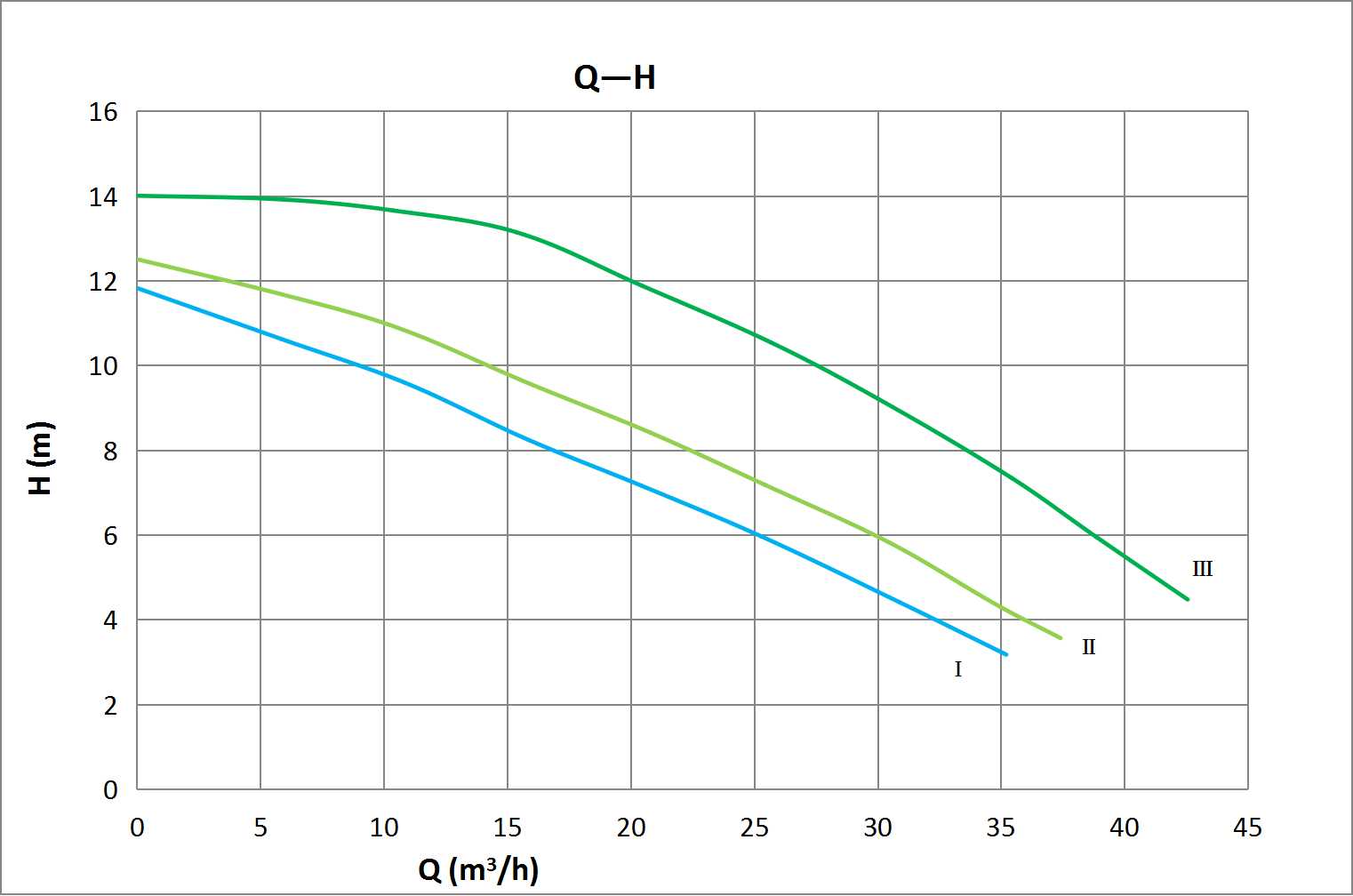

Basic 80-12SF Pro 380V	12	45	1500	50	80	380
Basic 25-9SZXL	9	7	300	50	25	220~240
Basic 20-12SZXL	13	4.5	300	50	20	220~240
Basic 25-12SZXL	12	7	500	50	25	220~240
Basic 20-16SZXL	16	5	500	50	20	220~240
Basic 25-16SZ	16	10.5	700	50	25	220~240
Basic 25-20SZ	20	12	1000	50	25	220~240
Basic 20-20SZ	20	8	700	50	20	220~240
Basic 20-26SZ	26	9	1000	50	20	220~240
Basic 20-35SZ	30	10	1300	50	20	220~240
